5" - U Bolt Standard Complete With Nuts - BZP - Pack of 5
In stock
Code
UBS500
| Code | UBS500 |
|---|---|
| EAN Code | 0760655135228 |
| Product Category | U Bolts - Standard |
| Pack Size | 5 |
| Type | Standard |
| Thread Length | 40mm |
| Diameter | 12mm |
| Material | Steel |
| Finish | Bright Zinc Plated and Clear Passivation |
| Thread Type | Metric Coarse |
| Nominal Bore Pipe | 5" |
| Width Between Legs | 140mm |
| Length Inside U To Thread End | 170mm |

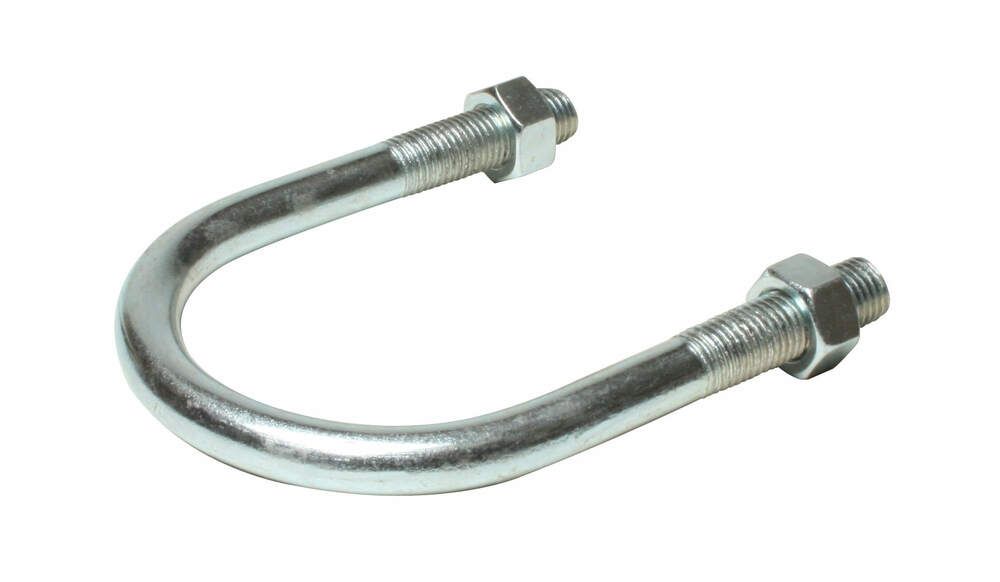

Our standard nominal bore pipe type 5" U bolt is a U-shaped metal fastener with threaded ends, designed to secure pipes or tubes to support structures. The 12mm metric coarse 40mm long threaded section of this U bolt has a width between the legs of 140mm.
